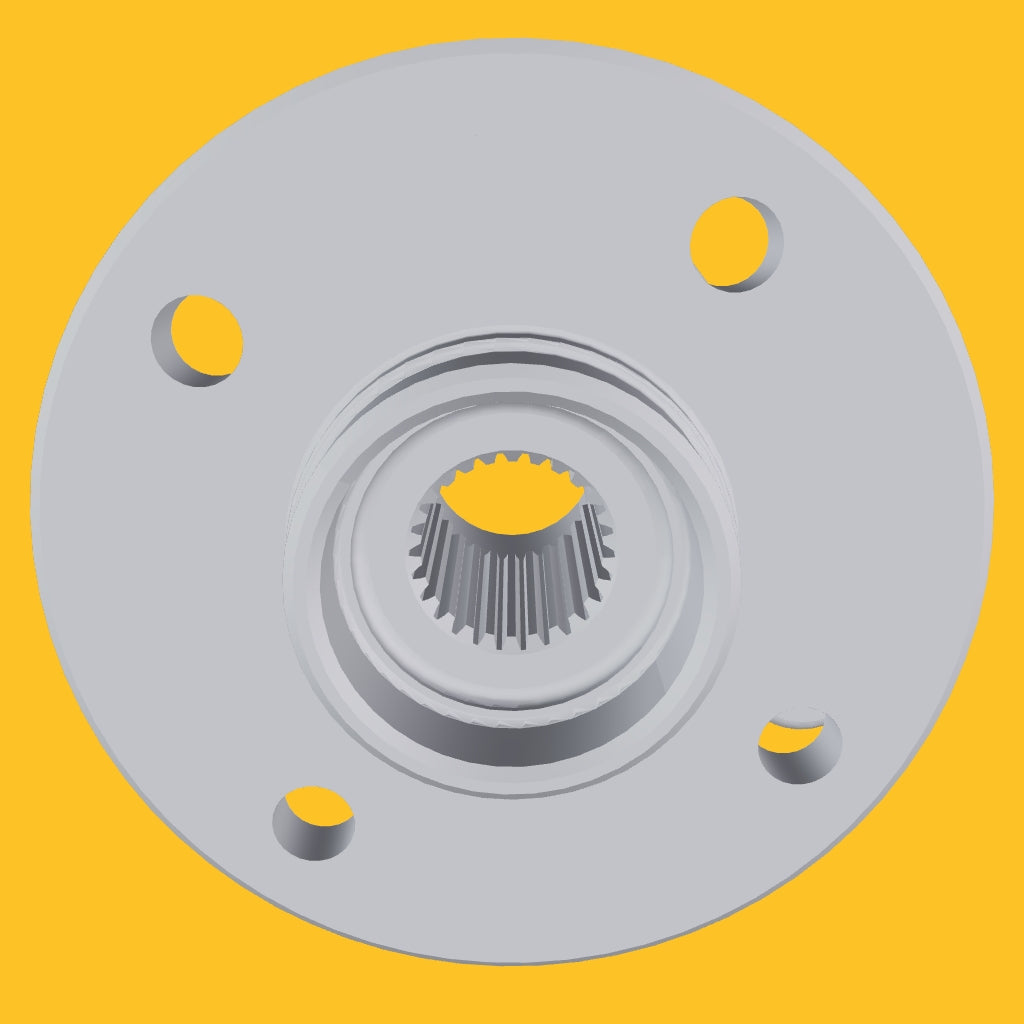

2016–2023 Mazda MX-5 Miata ND Rear Hub – Fusion 360 CAD File

Download the 2016–2023 Mazda MX-5 Miata ND rear hub CAD model for your next lightweight fabrication project.

The STEP file is free to download and use. If you want the editable native Fusion 360 file, it’s available for $5 to $20

This file is intended to give fabricators and designers a usable starting point without having to model the hub from scratch.

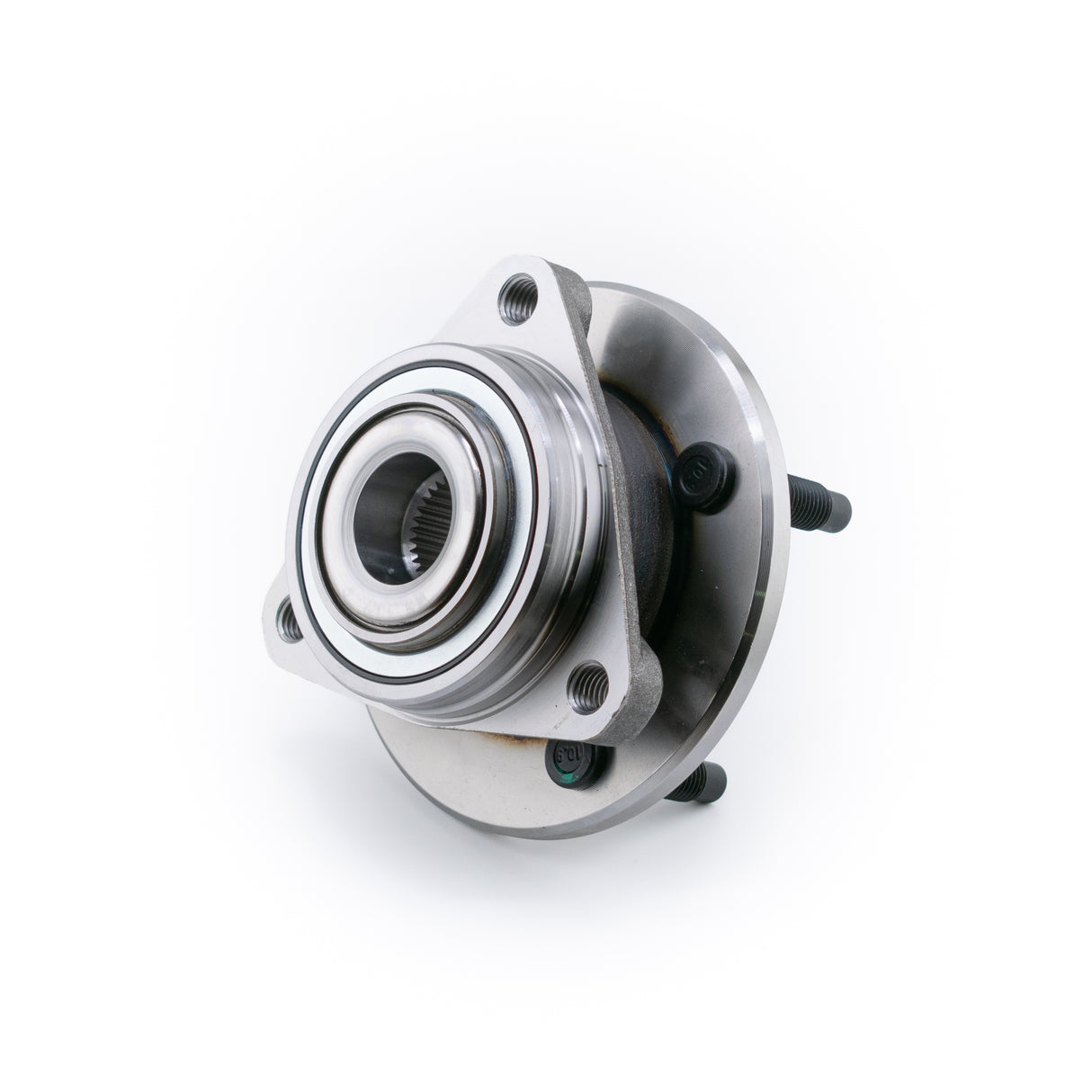

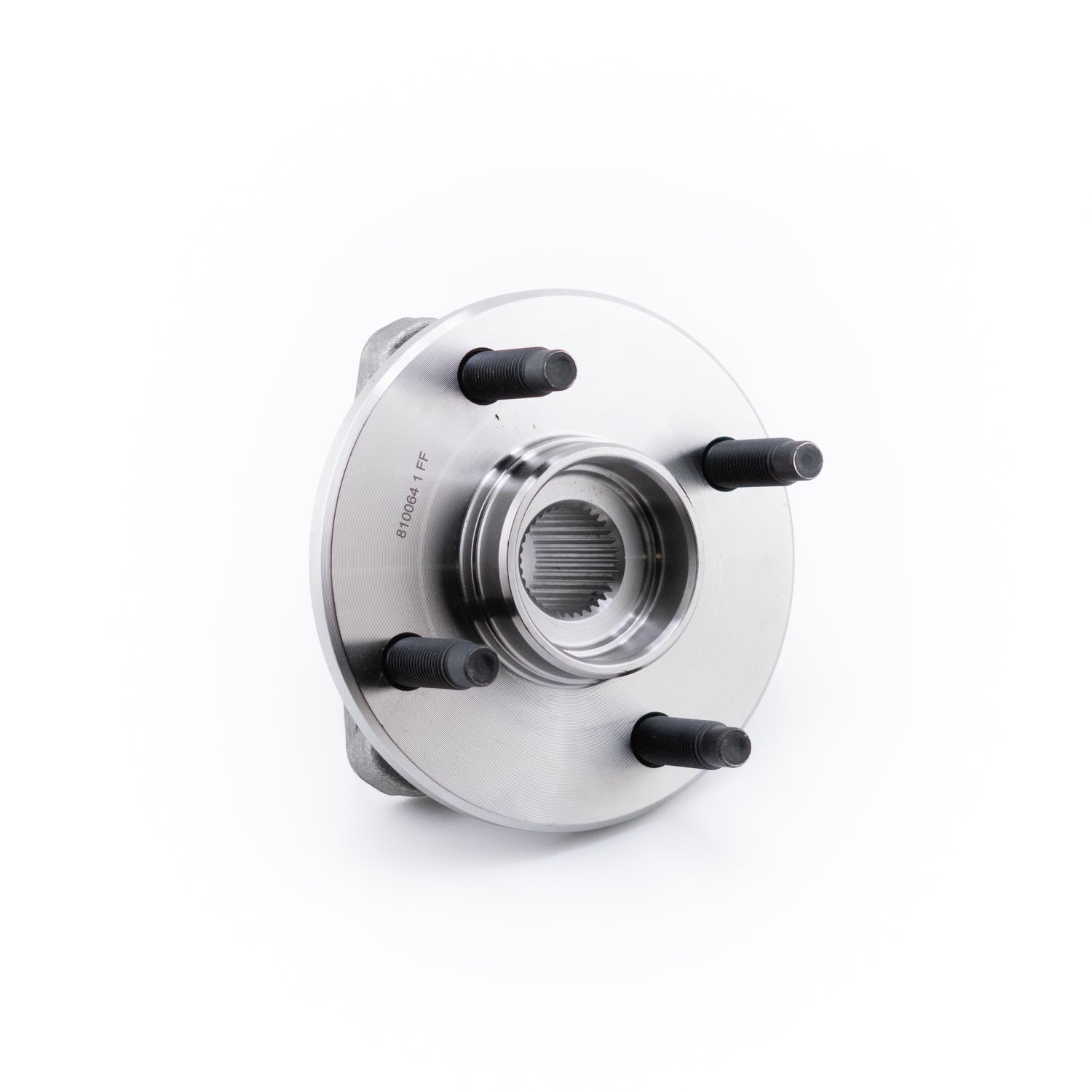

Hub Information

• Vehicle: 2016–2023 Mazda MX-5 Miata ND
• Mazda rear hub: N243-26-15X
• SKF equivalent: BR930971
• NSK: 60BWKH18
• Wheel bolt pattern: 4 × 100 mm
• Wheel studs: M12 × 1.5
• Wheel pilot: 54 mm
• Brake rotor pilot: approximately 55 mm
• Knuckle locating pilot: approximately 84.95 mm
• Hub mounting pattern: 3-bolt
• Mounting bolt circle: approximately 106 mm
• Rear axle spline: 26 spline
• Nominal spline diameter: approximately 27 mm
• Integrated ABS encoder ring

Great For

• Crosskarts
• Mini buggies
• High-performance go-karts
• Liter-bike powered street karts
• Lightweight tube chassis builds
• Small road racing cars
• Custom Miata-based projects
• Other lightweight automotive and kart builds

File Format

Autodesk Fusion 360 file and a Step file

The model can be opened directly in Fusion and used to build your own components around the factory-style Miata rear hub interface.

Thank you!

Thanks for downloading! Have an idea for another part or CAD file that would fit these types of builds? Send us an email—we’d love to hear it. Any support is greatly appreciated.

Important

This CAD model is provided as a design and fabrication reference.

While every effort has been made to accurately represent the hub and its important mounting dimensions, you should always verify critical dimensions against the actual hub, bearing, axle, brake rotor, and related components you intend to use before machining or manufacturing finished parts.

In particular, spline geometry, bearing fits, press fits, ABS sensor relationships, and safety-critical dimensions should be physically verified before production. The spline geometry is a estimate of spline count and 1mm module.

By downloading this file, you are responsible for verifying that your finished design is suitable for its intended application.

Use it, modify it, and build something awesome.
