Metric Fabricator | SKU:
MF-HFB-1012516

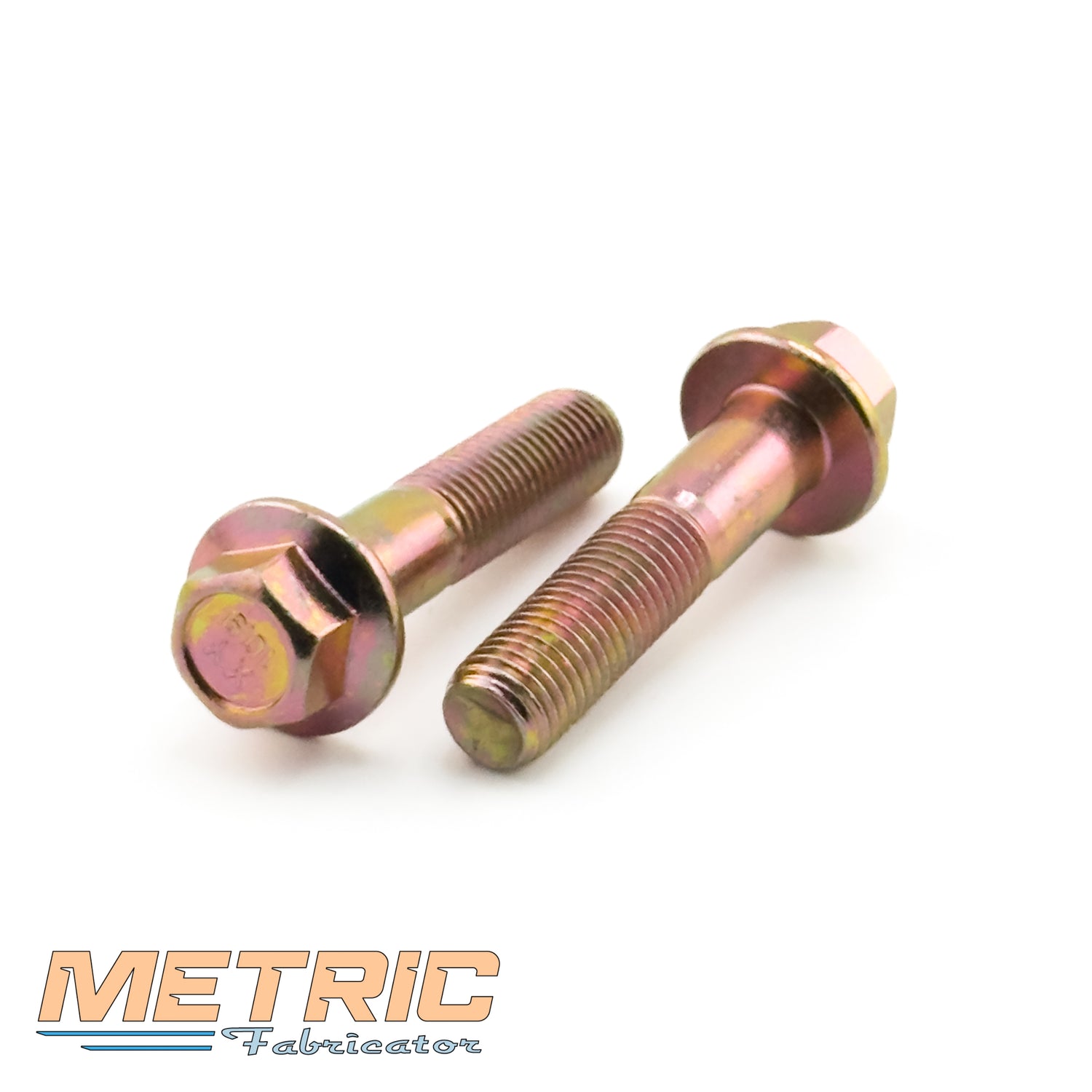

M10-1.25 Hex Flange Bolt Class 10.9
$0.91
Unit price
/
Unavailable
M10-1.25 Hex Flange Bolt Class 10.9 - 16 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Free shipping on orders over $50 for US and Canada! Some items may be excluded. See full details here.
M10-1.25 Hex Flange Bolt Class 10.9
From
$0.91
Unit price
/
Unavailable
Description
Description
- Sold Individually
- Non-Serrated
- Yellow Zinc
- 13mm Wrench
Bolt length is measured from the underside of the flange head to the end of the bolt. On partially threaded bolts, this includes both the shoulder and threaded portion.
| Size | Shoulder Length |
| M10-1.25x16 | Full Thread |
| M10-1.25x20 | Full Thread |
| M10-1.25x25 | Full Thread |
| M10-1.25x30 | Full Thread |
| M10-1.25x35 | Full Thread |
| M10-1.25x40 | 11mm |
| M10-1.25x45 | 16mm |
| M10-1.25x50 | 20mm |
| M10-1.25x55 | 25.5mm |
| M10-1.25x60 | 31mm |
| M10-1.25x65 | 36mm |
| M10-1.25x75 | 45mm |
| M10-1.25x80 | 47.5mm |
| M10-1.25x85 | 55.5mm |
| M10-1.25x90 | 59.5mm |
| M10-1.25x95 | 65.5mm |
| M10-1.25x100 | 70.5mm |
| M10-1.25x105 | 75mm |
| M10-1.25x110 | 79mm |
| M10-1.25x115 | 84.5mm |
| M10-1.25x120 | 90mm |
