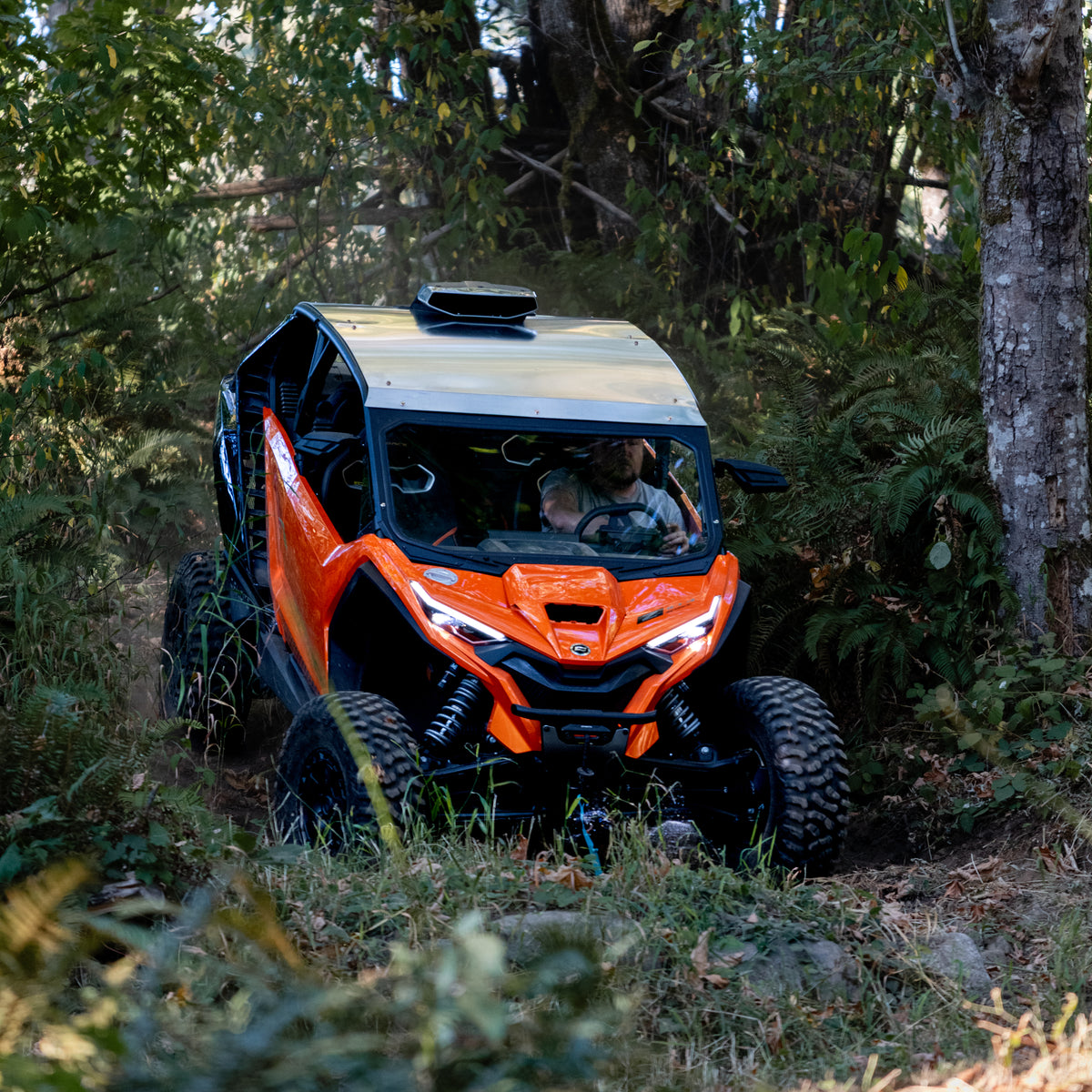

CFMOTO ZFORCE Z10-4 Two-Piece Aluminum Roof

Factory-scoop ready. Custom-fit to your machine.

Price: $500 shipped

Designed for the four-seat 2026 CFMOTO ZFORCE Z10-4, this two-piece roof is made from tough, workable 0.100-inch 5052 aluminum. It includes a precision-cut opening for the factory CFMOTO roof scoop and predrilled joining holes designed for M6 hardware.

Instead of using large, oversized universal mounting slots, the roof has two compact rear alignment slots. Position the roof using the two rear roll-cage mounting points, adjust it forward or backward, center it from left to right, and join the two panels. Once everything fits correctly, mark and drill the remaining mounting holes where they work best for your machine.

This approach accounts for differences in roll cages, brackets, windshields, and side enclosures. You choose the mounting locations, fastener size, and number of mounting points. It takes a little more effort, but you get a cleaner installation fitted to your Z10-4.

Features

• Two-piece design for the four-seat 2026 ZFORCE Z10-4
• Made from 0.100-inch 5052 aluminum
• Predrilled panel-joining holes designed for M6 hardware
• Two compact rear slots for initial alignment
• Final mounting holes are drilled by the installer
• No large, oversized universal mounting slots
• Factory roof-scoop opening already cut
• Includes aluminum roof-rail spacer washers in a breakaway pack
• Ready for paint, wrap, liner, or another custom finish
• Optional installation hardware kit available separately

Our prototype roof has already been through real-world use, including a rollover, and remained serviceable. The roof is not a structural component or rollover-protection device.

Factory Roof Scoop

The opening is designed for the factory Z10-4 roof scoop:

• CFMOTO roof scoop: 5CYV-803000-3000

This lets you purchase the factory scoop separately and choose the windshield you actually want, including an aftermarket glass windshield from Moto Armor or another manufacturer.

Recommended for Installation

• Our optional bolt and installation hardware kit
• Factory CFMOTO roof scoop, part 5CYV-803000-3000
• Approximately 1/2-inch-wide by 3/8-inch-thick foam tape
• Windshield of your choice
• Paint, wrap, or liner if you want a finished surface

The foam tape can be installed between the roof and roll cage to reduce vibration and provide spacing. The size above worked well for us, but you can use more or less depending on your setup.

The included breakaway pack of aluminum spacer washers can be used along the roof rails wherever additional spacing or leveling is needed.

Finish It Your Way

Leave the aluminum unfinished or customize it to match your build. You can paint or wrap the top, add a marine or wakeboard-style liner underneath, or combine a finished top with a lined underside. Additional cosmetic edge finishing can also be performed if desired.

Save Money and Choose Your Own Windshield

CFMOTO’s half-poly-windshield, roof, and scoop system for the Z10-4 is listed at $1,499.99 MSRP.

• Our two-piece aluminum roof: $500 shipped
• Factory scoop cost on our build: $299
• Scoop shipping on our build: approximately $60
• Combined roof-and-scoop cost: approximately $859

That is approximately $641 less than the $1,499.99 factory package, leaving more of your budget available for the windshield you actually want. Current scoop, windshield, tax, and shipping prices may vary.

Factory Part-Number Reference

• Z10-4 factory roof scoop: 5CYV-803000-3000
• Z10-4 factory aluminum roof: 5CYV-809200-1001
• Z10-4 half-windshield, roof, and scoop system: 5CYV-807600-1000

These part numbers are provided for fitment and comparison purposes. This is an aftermarket roof and is not a genuine CFMOTO accessory.

Custom Options

The standard roof is made from 0.100-inch 5052 aluminum. Alternative thicknesses may be available as part of a specialty batch or full-sheet order. Contact us for a custom quote.

Additional aluminum scoop styles using a common scoop base may also be offered in the future.

Have a two-seat Z10? We are looking for someone willing to bring in a two-seat machine for measuring and fitment so we can develop a two-seat version. Contact us if you are interested.

Important Notice

CFMOTO states that the proper roof and roof scoop must be used when installing a windshield, upper-door fillers, or other cab-enclosure components to maintain proper airflow and vehicle performance. Review your owner’s manual and confirm any warranty requirements with your CFMOTO dealer.

Final positioning, drilling, and installation are the purchaser’s responsibility. Confirm all clearances before drilling and periodically inspect the mounting hardware during use.
